Wafer type butterfly valve details
Size Range: 40mm to 600mm |
|
| Normative Standard |
Design Standard:
IS/ISO 13095 / API 609 / BS 5155 Testing Standard:
API 598 / IS/ISO 13095 Face to Face:
IS/ISO 13095 / API 609 / BS 5155 |
| Pressure Rating | PN 10/PN 16 |
| End connection | Wafer to suite ANSI 150 Class/BS Table D & E/DIN PN 10 & 16 |
| Materials |
Body:
CI, SGI/DI, WCB, CF8, CF8M, CF3, CF3M, Duplex, Super Duplex, etc. Disc:
CI, SGI/DI, WCB, CF8, CF8M, CF3, CF3M, Duplex, Super Duplex, Nylon Coated, Rubber Coated etc. Seat:
EPDM, Nitrile, Viton, Hypalon, Silicon, PTFE etc. |

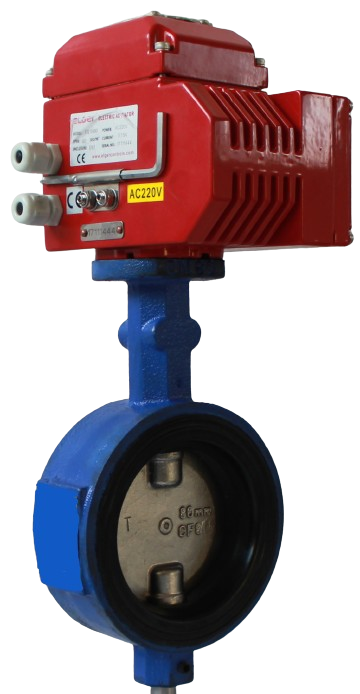

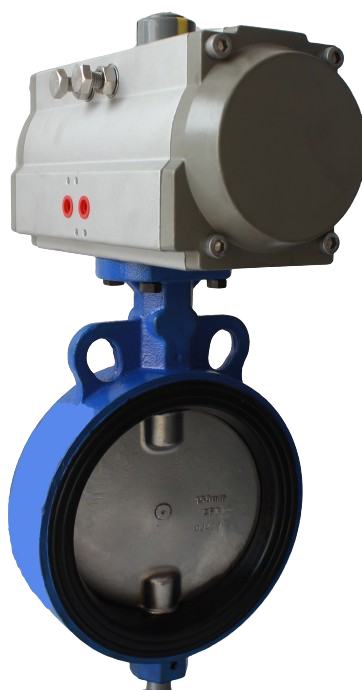

| Operation | MS/SS Handle, Warm Gear, Pneumatically Actuated, Electrically Actuated (Motorised), Limit & Tamper Switch Fitted |
Salient Features / Benefit
- Low torque resulting in low wear & long life
- Replaceable seat options available
- Easy to assemble & dismantle in replaceable seat
- Top flange as per ISO 5211 for easy actuation
- Full Bore gives high CV
- WCB & SS is Investment Casted Body upto 250mm
