Ball Valves

Drawing

Price

Size Range: 15mm to 300mm
Normative Standard	Design Standard: IS/ISO 17292 \| BS5351 \| API 6D Testing Standard: API 598 \| IS/ISO 17292 Face to Face: ASME B16.10 \| API 6D
Pressure Rating	150#
End connection	Flanged to suit ASME B16.5 #150
Materials	Body: WCB \| CF8 \| CF8M \| Super Duplex \| etc Ball: WCB \| CF8 \| CF8M \| Super Duplex \| etc Seat: PTFE , RPTFE, CFT, GFT, PEEK etc

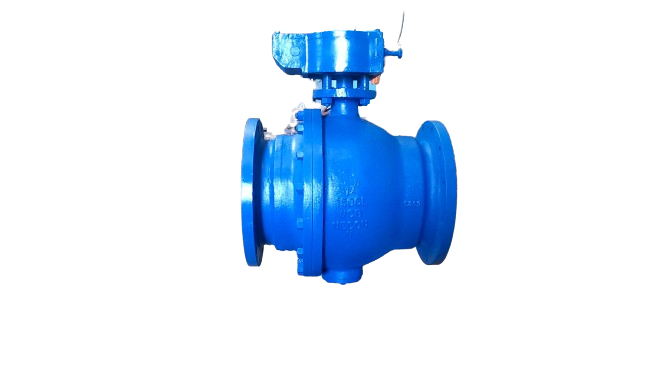

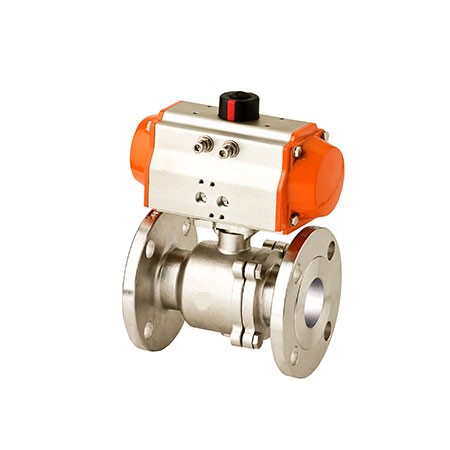

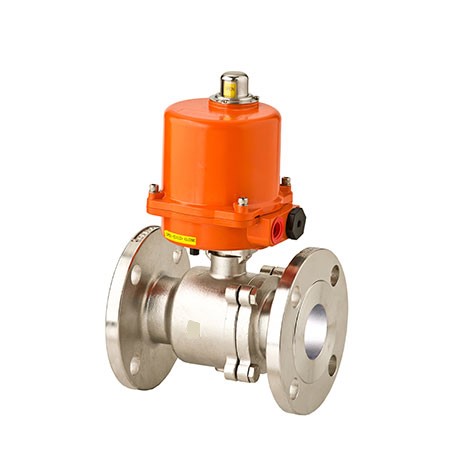

Operation	Lever Operated, Gear Operated, Pneumatically Actuated, Electrically Actuated (Motorized)
