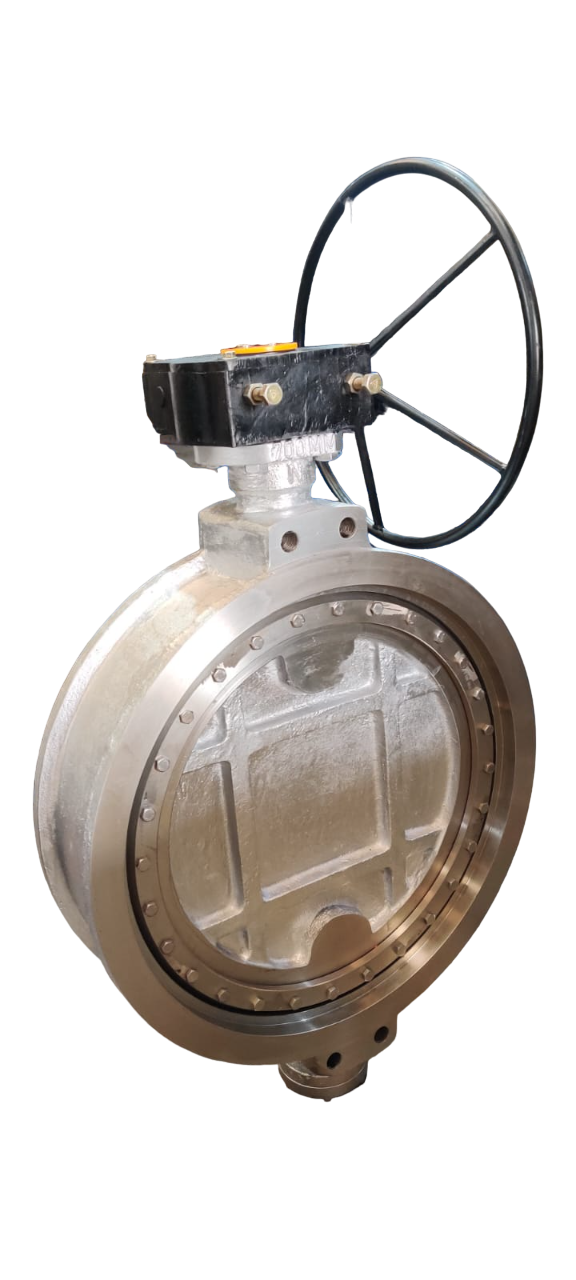

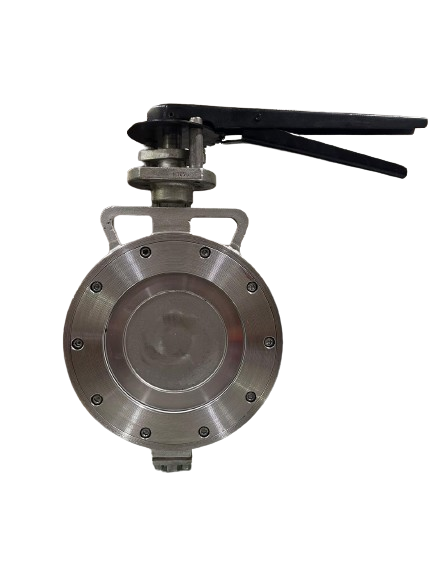

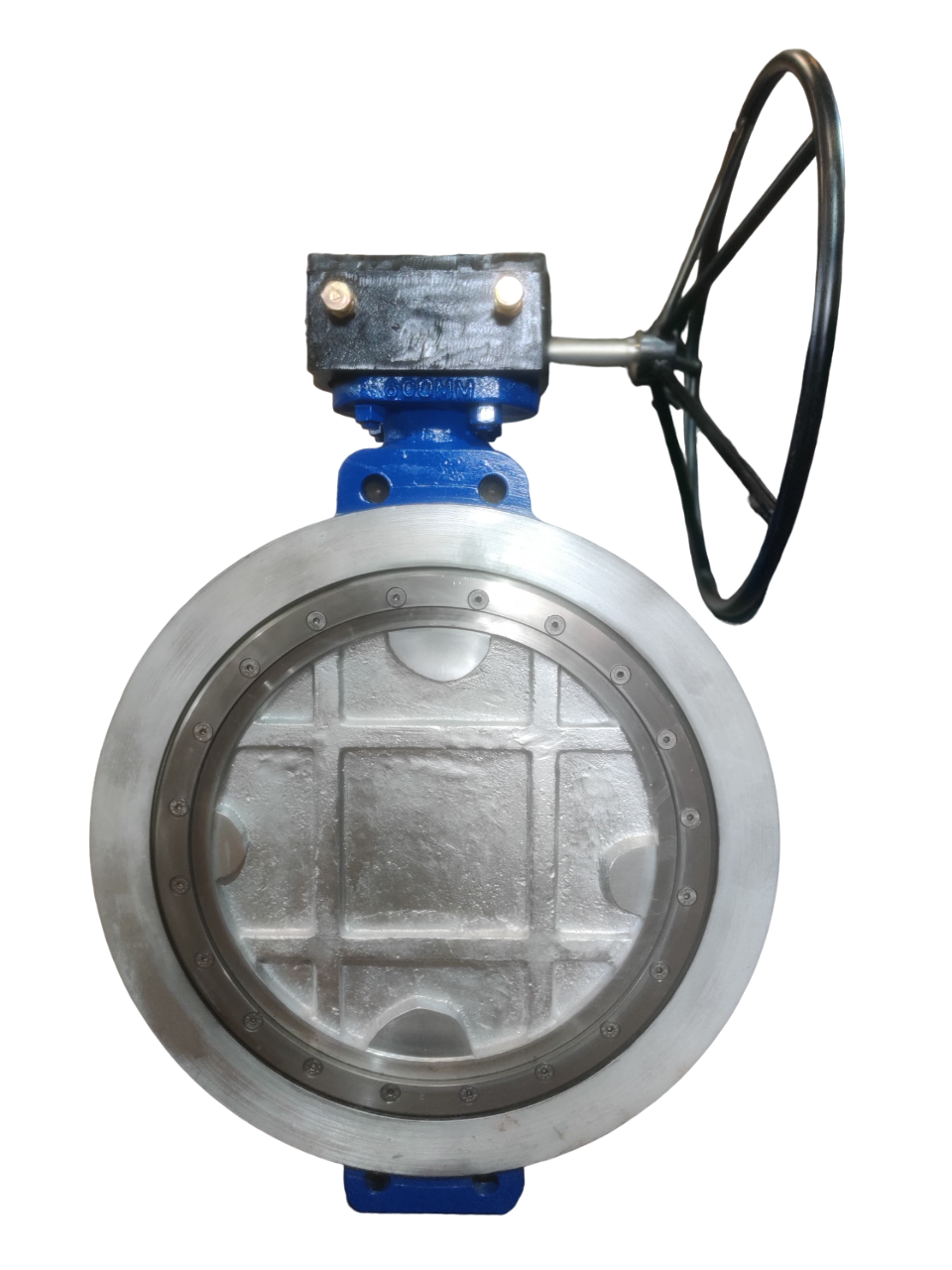

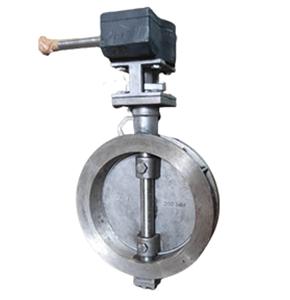

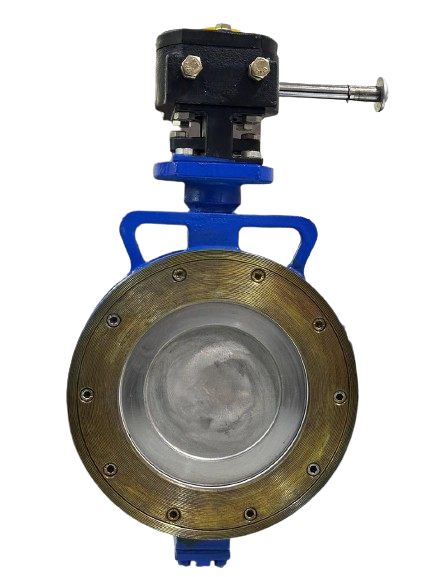

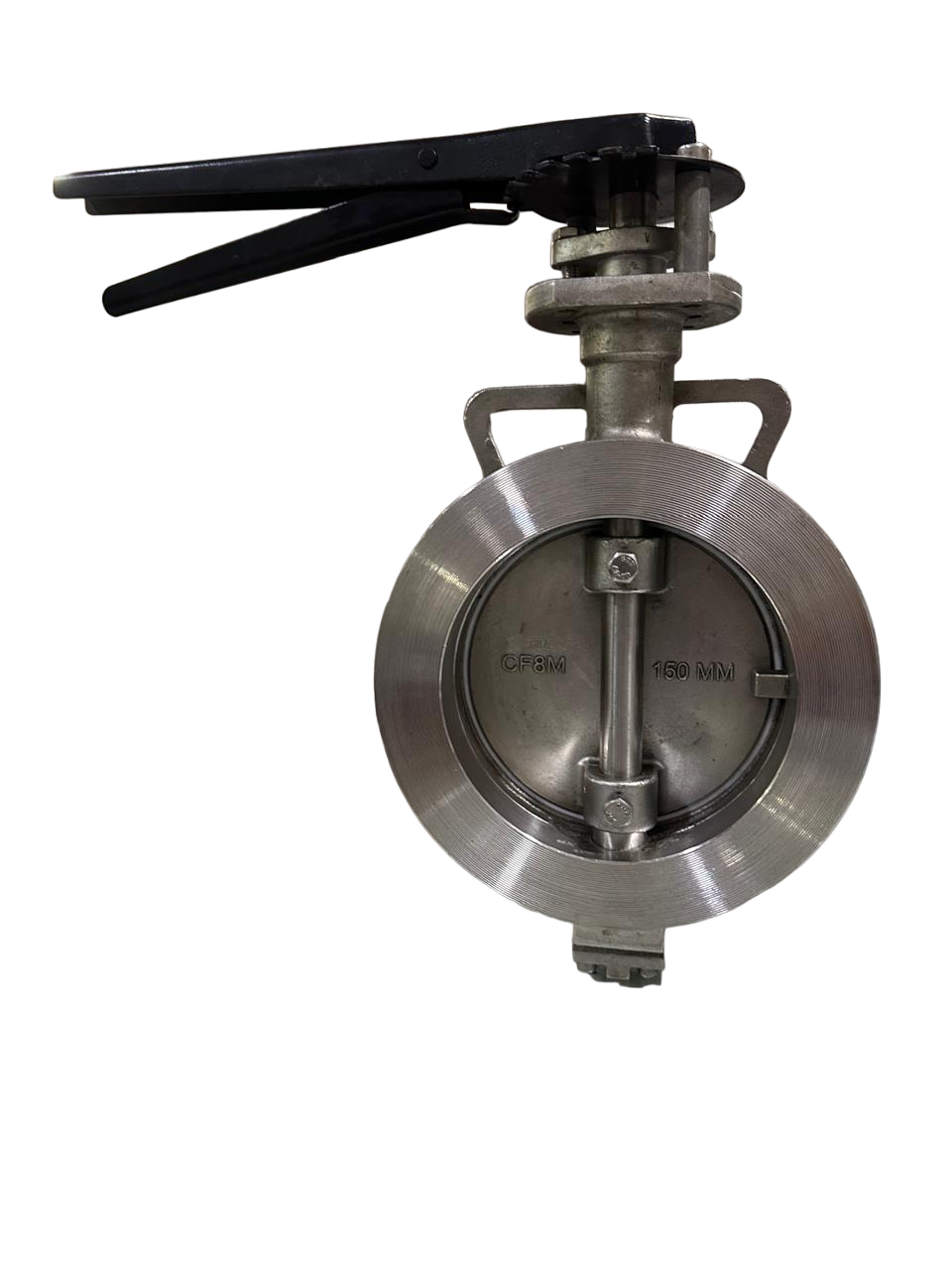

Wafer type butterfly valve details
Size Range: 40mm to 1000mm |
|
| Normative Standard |
Design Standard:
API 609 Testing Standard:
API 598 Face to Face:
API 609 |
| Pressure Rating | PN 10/PN 16 |
| End connection | Wafer to suite ANSI 150 Class /DIN PN 10 & 16 |
| Materials |
Body:
WCB, CF8, CF8M, CF3, CF3M, Duplex, Super Duplex, etc. Disc:
WCB, CF8, CF8M, CF3, CF3M, Duplex, Super Duplex, Nylon Coated, etc. Seat:
PTFE, R-PTFE, CGT, GFT, etc. |
| Operation | MS/SS Handle, Warm Gear, Pneumatically Actuated, Electrically Actuated (Motorised), Limit & Tamper Switch Fitted |
Salient Features / Benefit
- Low torque resulting in low wear & long life
- Replaceable seat options available
- Easy to assemble & dismantle in replaceable seat
- Top flange as per ISO 5211 for easy actuation
- Full Bore gives high CV
- WCB & SS is Investment Casted Body upto 300mm
