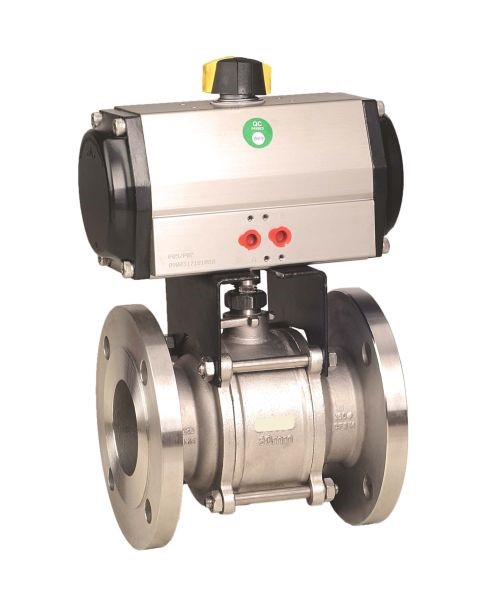

Ball Valves
Size Range: 15mm to 300mm |
|
| Normative Standard |
Design Standard: IS/ISO 17292 | BS5351 Testing Standard: API 598 | IS/ISO 17292 Face to Face: ASME B16.10 |
| Pressure Rating | 150# |
| End connection |
Flanged to suit ASME B16.5 #150 |
| Materials | Body: WCB | CF8 | CF8M | Super Duplex | etc Ball: WCB | CF8 | CF8M | Super Duplex | etc Seat: PTFE , RPTFE, CFT, GFT, PEEK etc |
| Operation | Lever Operated, Gear Operated, Pneumatically Actuated, Electrically Actuated (Motorized) |
Salient Features / Benefit
- Integral ISO Mounting Pad
- Low Torque & Long Life
- Floating Ball Type
- Push Type Gland
- Sturdy handle
- Mirror Finished Ball
- Anti Static & Fire safe valves available
- Locking Arrangement Available
