Ball Valves

Drawing

Price

Size Range: 15mm to 50mm
Normative Standard	Design Standard: IS/ISO 17292 \| BS5351 Testing Standard: API 598 \| IS/ISO 17292 Face to Face: ASME B16.10
Ansi class/ Rating	150#
End connection	Flanged to suit ASME B16.5 #150
Materials	Body: WCB \| CF8 \| CF8M \| Super Duplex \| etc Ball: WCB \| CF8 \| CF8M \| Super Duplex \| etc Seat: PTFE \| RPTFE \| CFT \| GFT \| PEEK etc

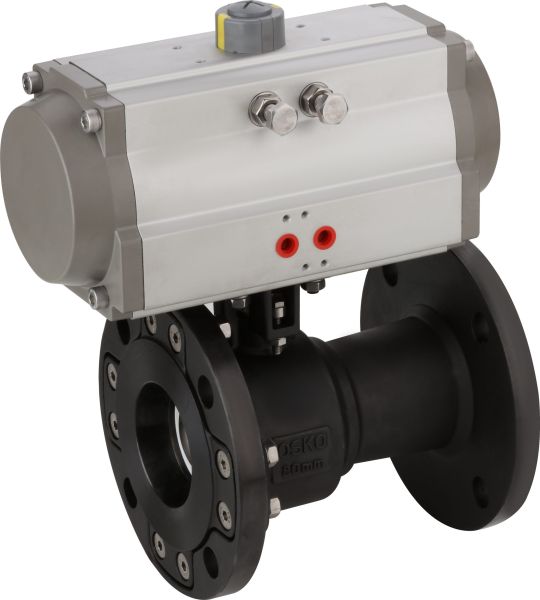

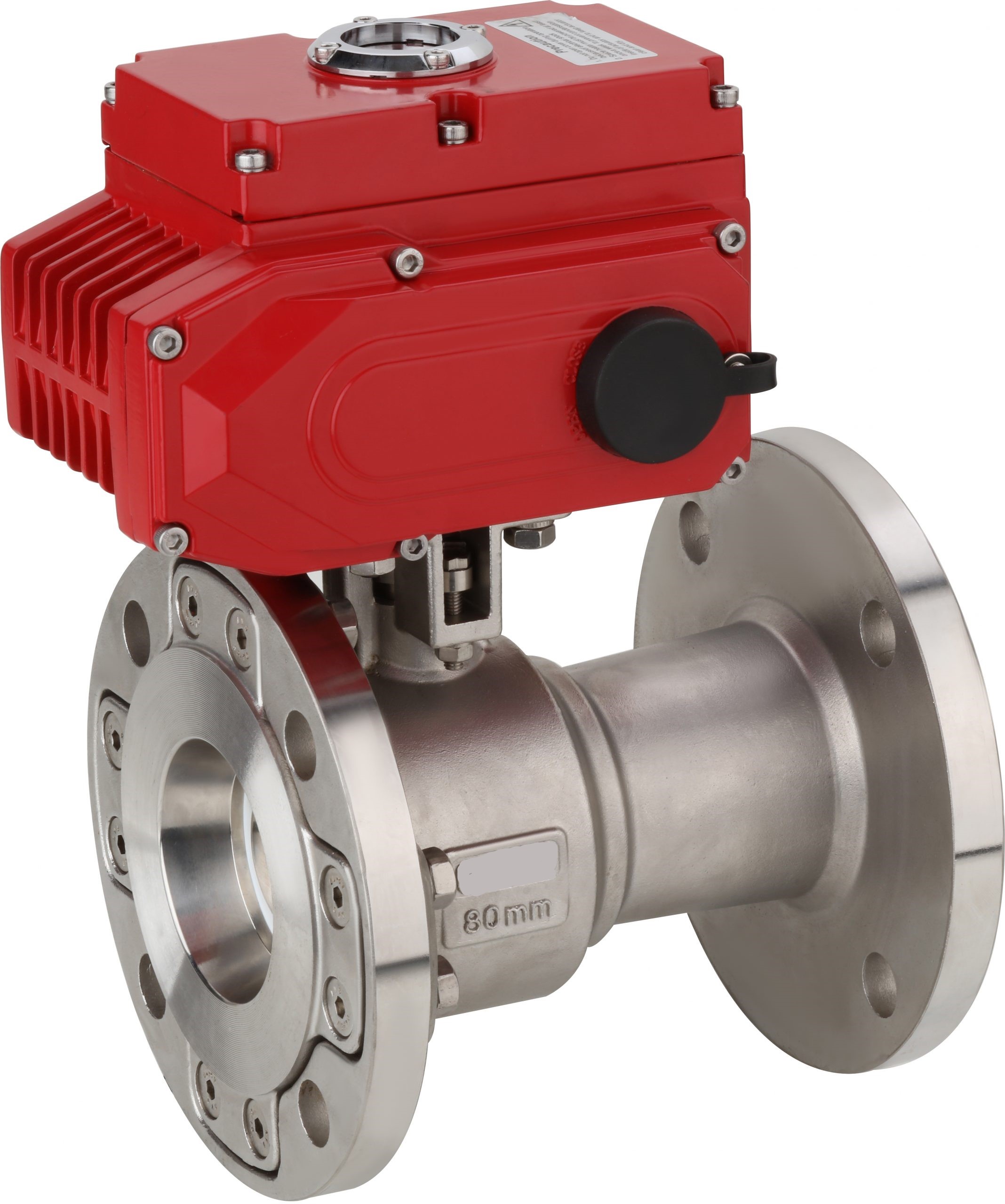

Operation	Lever Operated , Gear Operated , Pneumatically Actuated, Electrically Actuated (Motorised)
